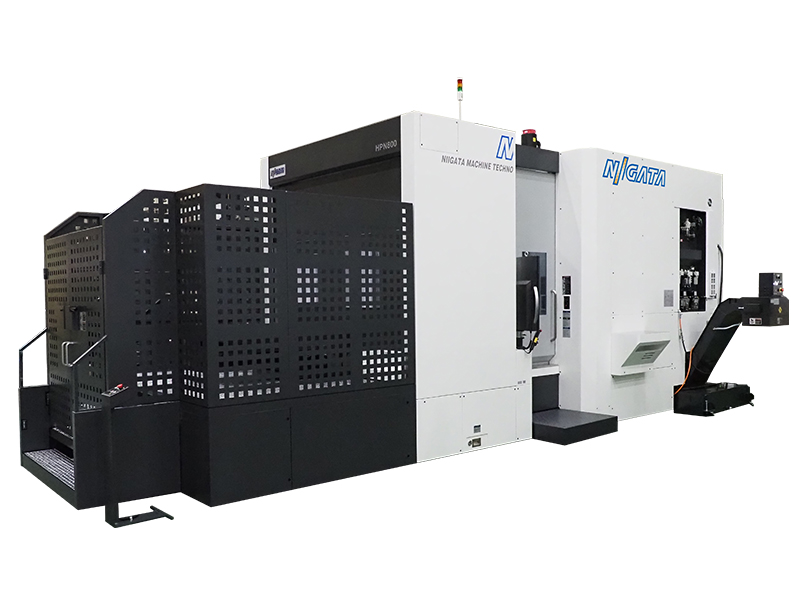

HPN800-BAR High Performance Hybrid Style Horizontal Machining Center
- Higher productivity, heavier duty, greater workpiece envelope, and variety of high performance spindles.
- Niigata’s unique design “Hybrid Style” guideway system.
- HPN800-BAR employs ultra-rigid roller-guide system on X and Z axes with hardened, ground true box-way system on Y axis to maximize damping characteristics in the cut.
- A one piece ultrarigid T-shape machine base with honeycomb structure and 3 point leveling.
- Higher productivity with rapids of 2,362 ipm and Cam driven ATC system time T to T 2.5 seconds.
- A horizontal machine for combined substantial rough machining with precision finish processes.

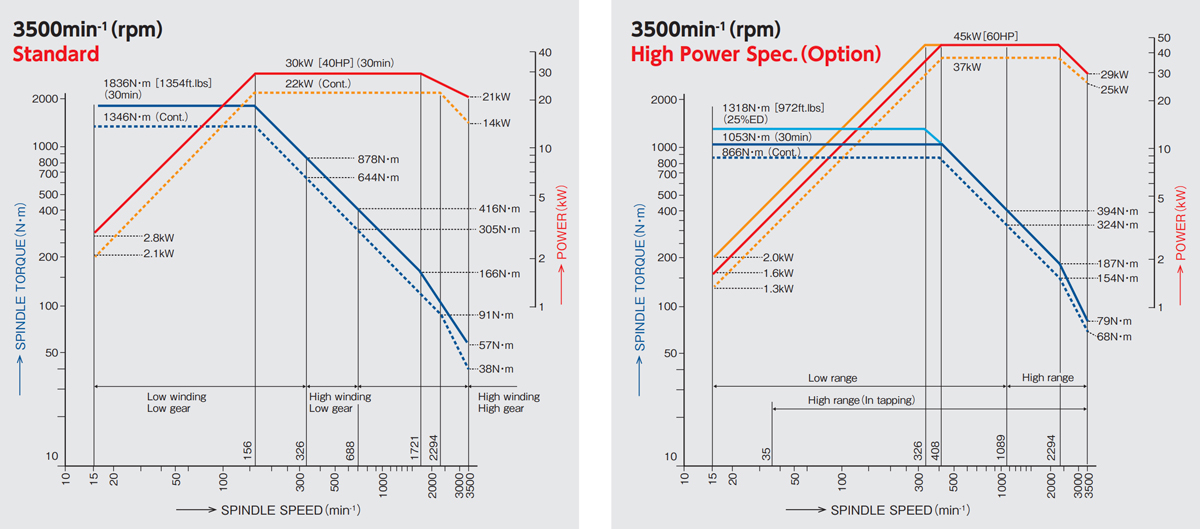

| SPECIFICATIONS | ITEM | HPN800-BAR | |
|---|---|---|---|
| TRAVEL & WORK CAPACITY | X axis travel (column) | 1529 mm | 60.2" |
| Y axis travel (vertical head) | 1229 mm | 48.4" | |
| Z axis travel (table) | 1219 mm | 48.0" | |
| Maximum workpiece swing diameter | φ1750mm | φ68.9" | |
| TABLE | Table working surface | 800 x 800 mm | 31.5 x 31.5" |
| Table increments | 1° [0.001°] | 1° [0.001°] | |
| Maximum load on pallet (centralized) | 2494.76 kg | 5500 lbs. | |
| SPINDLE | Spindle speeds | 8000 min-1 | 8000 rpm |
| Spindle speeds (OP) | 15000 min-1 | 15000 rpm | |
| Spindle drive motor | AC55kw | AC73HP | |
| Spindle max. torque | 1202N•m | 886 ft•lbs | |
| Spindle taper | CAT 50 | CAT 50 | |
| Horsepower (30 min./constant) | 55/74 HP AC | 55/74 HP AC | |
| FEEDRATE | Rapid traverse X axis | 60 m/min | 2361 ipm |
| Rapid traverse Y axis | 60 m/min | 2361 ipm | |
| Rapid traverse Z axis | 60 m/min | 2361 ipm | |
| AUTOMATIC TOOL CHANGER (ATC) | Tool magazine capacity | Chain 90 [128] | Chain 90 [128] |
| GENERAL | Machine weight approx. | 40000 kg | 68343 lbs |
| Control | Fanuc 30iB (31iB) | Fanuc 30iB (31iB) | |
All specifications subject to change without notice.

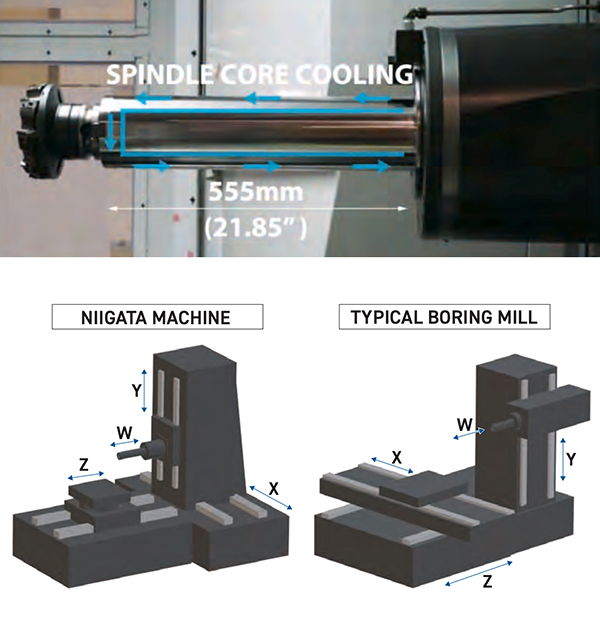

Bar/Quill Capability on Horizontal Machining Center
HPN800 can be equipped with BAR/QUILL and spindle core cooling system. The new BAR design brings improvement in performance and accuracy compared to traditional horizontal boring mills.
- Center-Mounted Spindle Eliminates the column twist by side-mounted spindle
- Ergonomically Superior A full enclosure, with ATC and APC are standard to maximize the performance
- Center Thru Coolant Better cutting performance, longer tool life, superior chip removal
Hybrid structure that achieves high productivity
The machine's structure, which combines high productivity with heavy-duty cutting capabilities, significantly improves the productivity of boring operations.

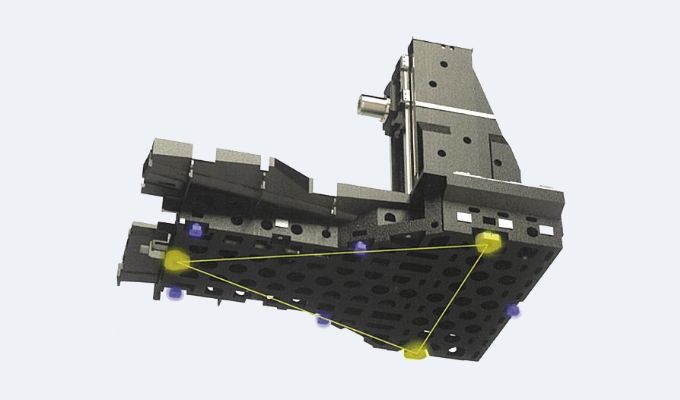

3-point support
High precision and rigidity are achieved through 3-point support and 5-point auxiliary leveling.
Fast forward speed: 60 m/min
This machine boasts top-level rapid traverse speeds for its size, resulting in exceptional productivity.

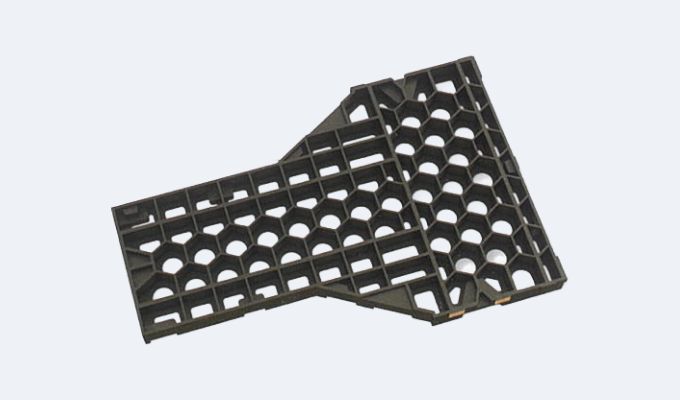

Honeycomb rib structure
The T-shaped, high-rigidity base features a honeycomb-type rib structure that provides high cutting performance.

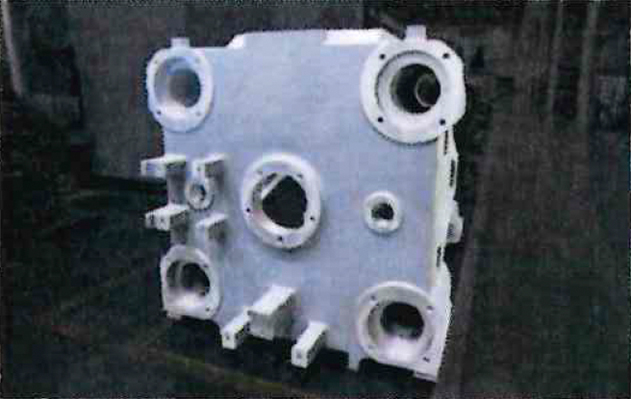

End plate for injection molding machine
Because the end plates of injection molding machines are large and require high precision, high mechanical rigidity is essential. Furthermore, the burden of setup changes becomes greater with large workpieces.
The BAR series' high rigidity machine structure and BAR spindle enable deep hole drilling in a single chucking without setup changes, achieving both high-precision machining and productivity.
