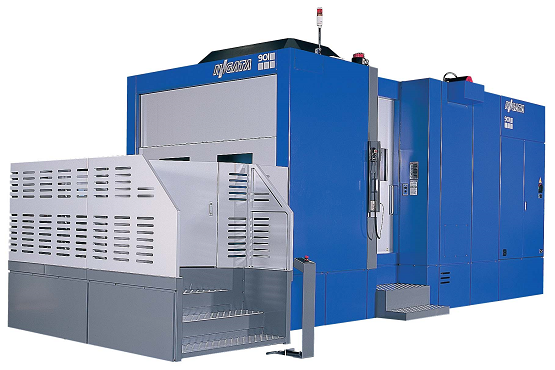

SPN901 High-Speed Linear Roller Guide Horizontal Machining Center
- High-speed linear roller guide horizontal machining center features excellent machine accuracy and stability with a high torque/speed #50 taper spindle.
- Box in box (double box structure) achieves long-term volumetric accuracy.
- Solid base and simple 3-point leveling.
- Ultra rigid and high load type roller guideway system.
- Unique synchronous swing motion (SSM) reduces ATC time.
| SPECIFICATIONS | ITEM | SPN901 | |
|---|---|---|---|
| TRAVEL & WORK CAPACITY | X axis travel (longitudinal saddle) | 1500 mm | 59.1" |
| Y axis travel (vertical head) | 1300 mm | 51.2" | |
| Z axis travel (table in & out) | 1150 mm | 45.3" | |
| Swing diameter inside machine | 1750 mm | 68.9" | |
| Height | 1400 mm | 55.1" | |
| TABLE | Table working surface | 800 x 800 mm | 31.5 x 31.5 " |
| Table increments | 1° [0.001°] | 1° [0.001°] | |
| Maximum mass on pallet | STD:2000 kg OP:2500kg | STD:4400 lbs OP:5500 lbs | |
| SPINDLE | Spindle speeds | 8000 min-1 | 8000 rpm |
| Spindle speeds (OP) | 15000 min-1 | 15000 rpm | |
| Spindle taper | CAT 50 | CAT 50 | |
| FEEDRATE | Rapid traverse X axis | 50 m/min | 1968 ipm |
| Rapid traverse Y axis | 50 m/min | 1968 ipm | |
| Rapid traverse Z axis | 50 m/min | 1968 ipm | |
| AUTOMATIC TOOL CHANGER (ATC) | Tool magazine capacity | Chain 62 [88/128/175/255] Matrix [126/178/230/308] |
Chain 62 [88/128/175/255] Matrix [126/178/230/308] |
| GENERAL | Machine weight approx. | 28000 kg | 61600 lbs |
| Control | Fanuc 30iB (31iB) | Fanuc 30iB (31iB) | |
All specifications subject to change without notice.
Additional information to come.
