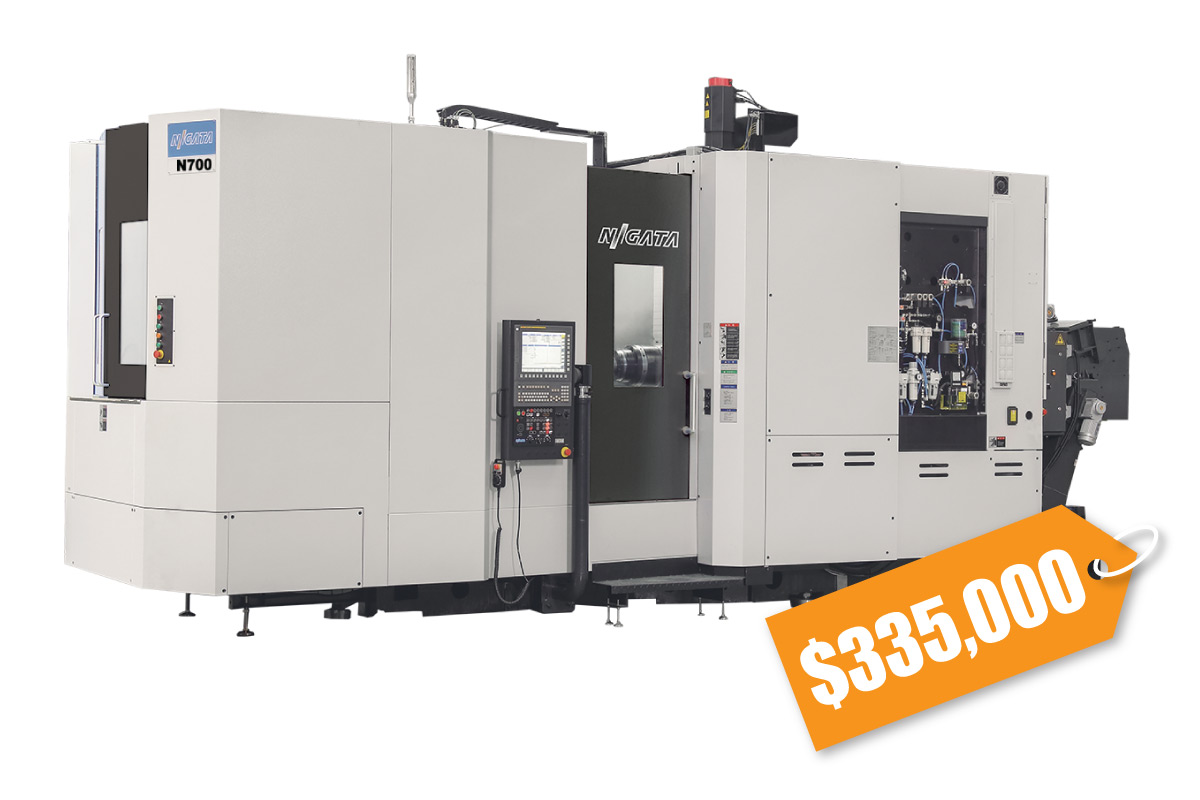

N700 High Production Horizontal Machining Center
- BOX in BOX® Niigata, the originator of the "BOX in BOX®" design, introduces the NEW generation N series.
- Rapid traverse 2362.2ipm X, Y, Z, all axis rapid traverse for increased production capacity.
- 12000min-1 spindle The spindle provides speed, power and accuracy for full range of cutting conditions.
- CNC control Fanuc F31i-B Plus
- Machines from inventory Competitive delivery time and competitive pricing
| SPECIFICATIONS | ITEM | N700 | |
|---|---|---|---|
| TRAVEL & WORK CAPACITY | X axis travel | 1000 mm | 39.37" |
| Y axis travel | 950 mm | 37.40" | |
| Z axis travel | 1050 mm | 41.34" | |
| Spindle center line to pallet surface | 80~1030 mm | 3.15~40.55" | |
| Spindle nose to table center line | 100~1150 mm | 3.94~45.28" | |
| TABLE | Table working surface | 630 x 630 mm | 24.80 x 24.80" |
| Maximum workpiece envelope | φ1100 mm x H1200 mm | φ43.31" x H47.24" | |
| Table increments | 0.001° | ||
| Maximum mass on pallet | 1200 kg | 2645.55 lbs | |
| SPINDLE | Spindle speeds | 12000 min-1 | 12000 rpm |
| Spindle motor | AC45/26 kw | AC60.35/34.87 HP | |
| Spindle max. torque | 623 N•m | 459.50 ft•lbs | |
| FEEDRATE | Rapid traverse X-Y-Z | 60 m/min | 2362.2 ipm |
| Cutting X-Y-Z | 40 m/min | 1574.8 ipm | |
| AUTOMATIC TOOL CHANGER (ATC) | Tool magazine capacity, chain | 60 | |
| Tool shank | CT 50 BIG PLUS | ||
| Maximum milling cutter dia. | φ120 mm [φ130 mm] | φ4.72" [φ5.12"] | |
| Maximum tool length | 630 mm | 24.80" | |
| Maximum tool mass | 30 kg | 66.14 lbs | |
| Tool change time | 1.9s(10 kg) 2.5s(20 kg) 3.1s(30 kg) | 1.9s(22.05 lbs) 2.5s(44.09 lbs) 3.1s(66.14 lbs) | |
| APC | Type | Direct Turn | |
| Number of pallets | 2 | ||
| Accuracy | Positioning / full stroke Z-Y-Z | ±0.002 mm | ±0.00007874" |
| Repeatability Z-Y-Z | ±0.001 mm | ±0.00003937" | |
| GENERAL | Machine weight approx. | 23000 kg | 50706.32 lbs |
All specifications subject to change without notice.
Additional information to come.
