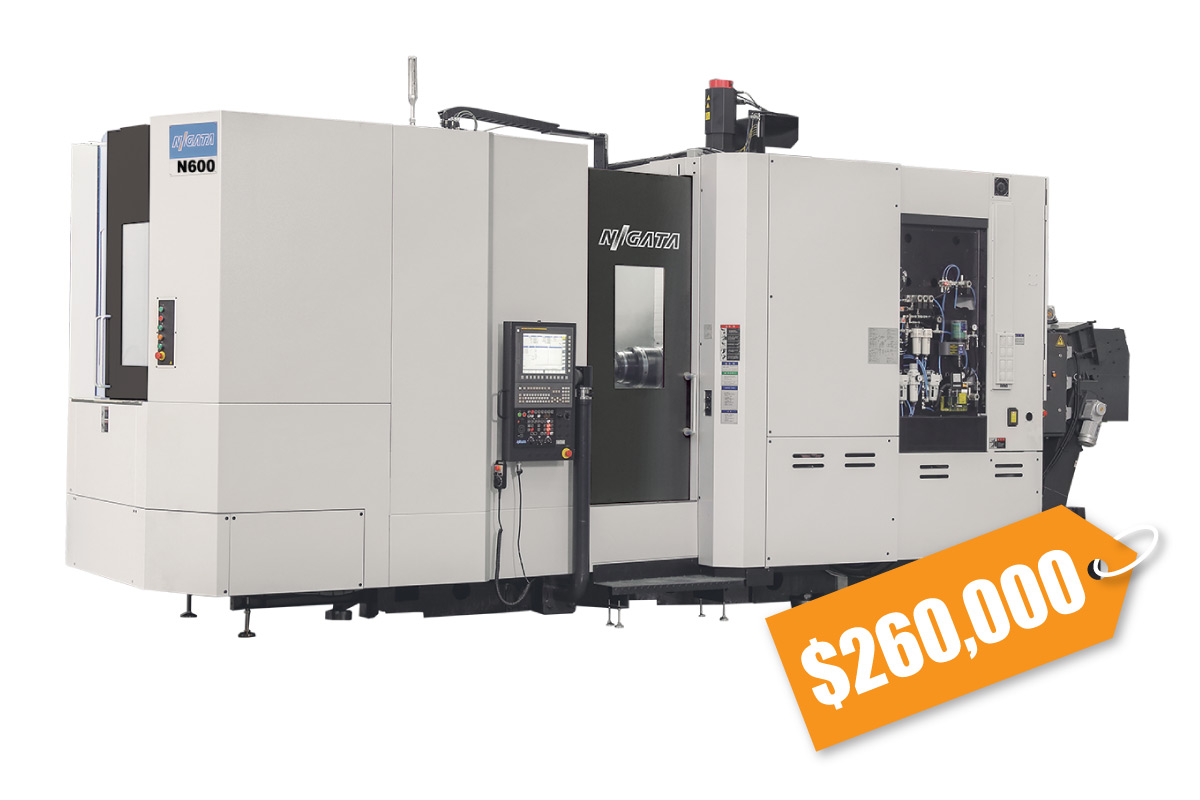

N600 High Production Horizontal Machining Center
- BOX in BOX® Niigata, the originator of the "BOX in BOX®" design, introduces the NEW generation N series.
- Rapid traverse 2362.2ipm X, Y, Z, all axis rapid traverse for increased production capacity.
- 12000min-1 spindle The spindle provides speed, power and accuracy for full range of cutting conditions.
- CNC control Fanuc F31i-B Plus
- Machines from inventory Competitive delivery time and competitive pricing
| SPECIFICATIONS | ITEM | N600 | |
|---|---|---|---|
| TRAVEL & WORK CAPACITY | X axis travel | 800 mm | 31.5" |
| Y axis travel | 750 mm | 29.53" | |
| Z axis travel | 850 mm | 33.46" | |
| Spindle center line to pallet surface | 80~830 mm | 3.15~32.68" | |
| Spindle nose to table center line | 100~950 mm | 3.94~37.40" | |
| TABLE | Table working surface | 500 x 500 mm | 19.69 x 19.69" |
| Maximum workpiece envelope | φ800 mm x H1000 mm | φ31.5" x H39.37" | |
| Table increments | 0.001° | ||
| Maximum mass on pallet | 800 kg | 1763.70 lbs | |
| SPINDLE | Spindle speeds | 12000 min-1 | 12000 rpm |
| Spindle motor | AC45/26 kw | AC60.35/34.87 HP | |
| Spindle max. torque | 623 N•m | 459.50 ft•lbs | |
| FEEDRATE | Rapid traverse X-Y-Z | 60 m/min | 2362.2 ipm |
| Cutting X-Y-Z | 40 m/min | 1574.8 ipm | |
| AUTOMATIC TOOL CHANGER (ATC) | Tool magazine capacity, chain | 60 | |
| Tool shank | CT 50 BIG PLUS | ||
| Maximum milling cutter dia. | φ120 mm [φ130 mm] | φ4.72" [φ5.12"] | |
| Maximum tool length | 550 mm | 21.65" | |
| Maximum tool mass | 30 kg | 66.14 lbs | |
| Tool change time | 1.9s(10 kg) 2.5s(20 kg) 3.1s(30 kg) | 1.9s(22.05 lbs) 2.5s(44.09 lbs) 3.1s(66.14 lbs) | |
| APC | Type | Direct Turn | |
| Number of pallets | 2 | ||
| Accuracy | Positioning / full stroke Z-Y-Z | ±0.002 mm | ±0.00007874" |
| Repeatability Z-Y-Z | ±0.001 mm | ±0.00003937" | |
| GENERAL | Machine weight approx. | 16000 kg | 35273.96 lbs |
All specifications subject to change without notice.
Additional information to come.
