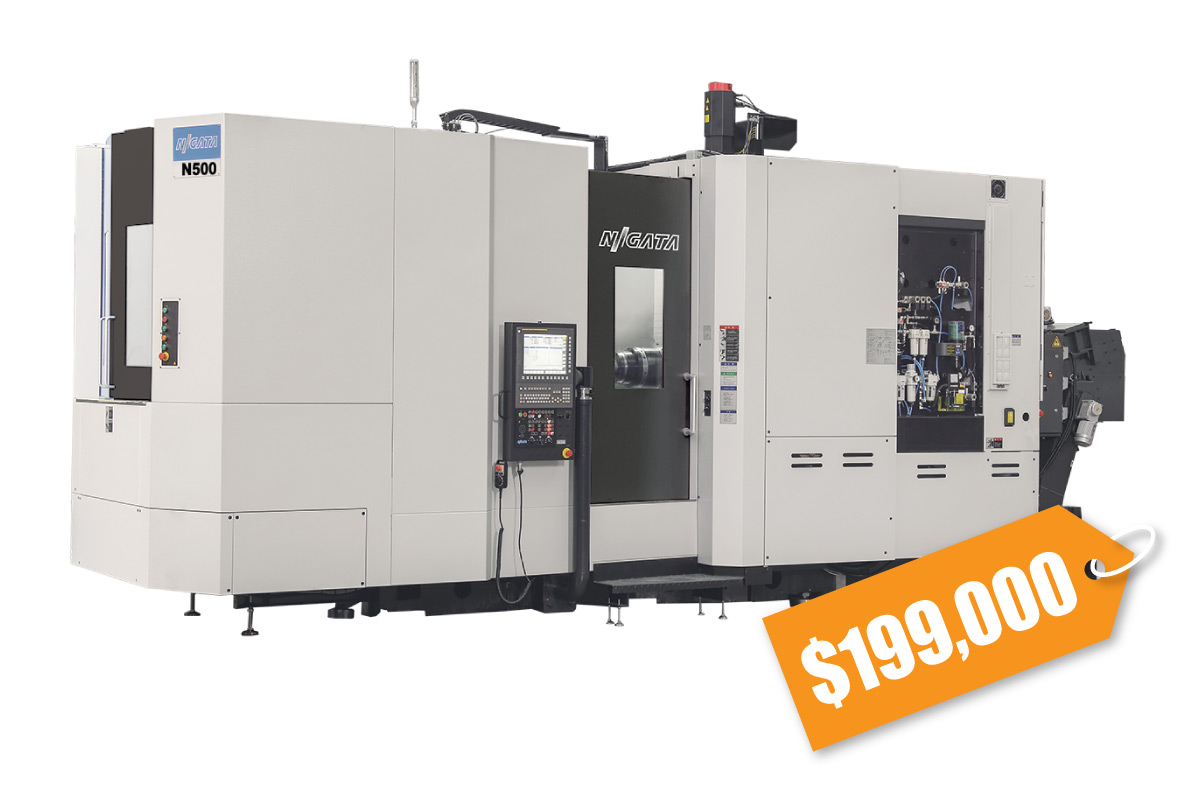

N500 High Production Horizontal Machining Center
- BOX in BOX® Niigata, the originator of the "BOX in BOX®" design, introduces the NEW generation N series.
- Rapid traverse 2362.2ipm X, Y, Z, all axis rapid traverse for increased production capacity.
- 15000min-1 spindle The spindle provides speed, power and accuracy for full range of cutting conditions.
- CNC control Fanuc F31i-B Plus
- Machines from inventory Competitive delivery time and competitive pricing
| SPECIFICATIONS | ITEM | N500 | |
|---|---|---|---|
| TRAVEL & WORK CAPACITY | X axis travel | 730 mm | 28.74" |
| Y axis travel | 700 mm | 27.56" | |
| Z axis travel | 760 mm | 29.92" | |
| Spindle center line to pallet surface | 80~780 mm | 3.15~30.71" | |
| Spindle nose to table center line | 100~860 mm | 3.94~33.86" | |
| TABLE | Table working surface | 500 x 500 mm | 19.69 x 19.69" |
| Maximum workpiece envelope | φ700 mm x H900 mm | φ27.56" x H35.43" | |
| Table increments | 0.001° | ||
| Maximum mass on pallet | 500 kg | 1102.31 lbs | |
| SPINDLE | Spindle speeds | 15000 min-1 | 15000 rpm |
| Spindle motor | AC37/22 kw | AC49.62/29.50 HP | |
| Spindle max. torque | 303 N•m | 223.48 ft•lbs | |
| FEEDRATE | Rapid traverse X-Y-Z | 60 m/min | 2362.2 ipm |
| Cutting X-Y-Z | 40 m/min | 1574.8 ipm | |
| AUTOMATIC TOOL CHANGER (ATC) | Tool magazine capacity, chain | 60 | |
| Tool shank | CT 40 BIG PLUS | ||
| Maximum milling cutter dia. | φ95 mm | φ3.74" | |
| Maximum tool length | 500 mm | 19.69" | |
| Maximum tool mass | 12 kg | 26.46 lbs | |
| Tool change time | 1.2s(4 kg) 1.7s(12 kg) | 1.2s(8.82 lbs) 1.7s(26.46 lbs) | |
| APC | Type | Direct Turn | |
| Number of pallets | 2 | ||
| Accuracy | Positioning / full stroke Z-Y-Z | ±0.002 mm | ±0.00007874" |
| Repeatability Z-Y-Z | ±0.001 mm | ±0.00003937" | |
| GENERAL | Machine weight approx. | 15000 kg | 33069.34 lbs |
All specifications subject to change without notice.
Additional information to come.
