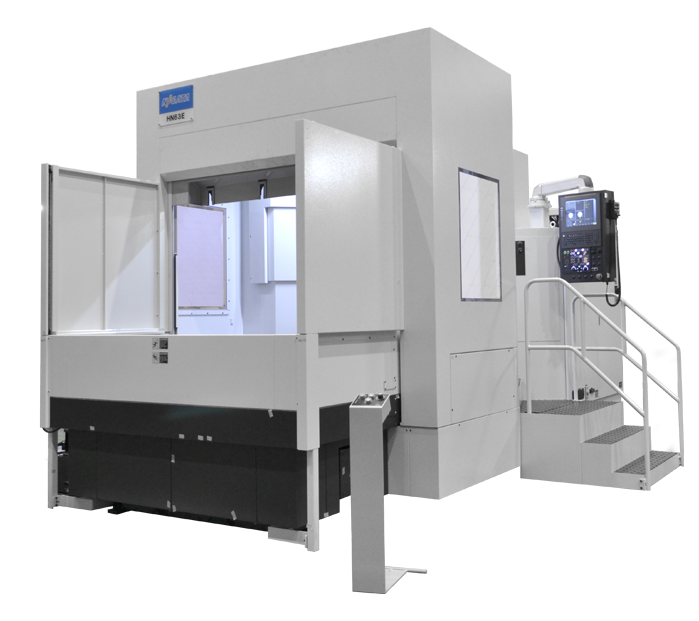

HN63E Heavy Duty Boxway Horizontal Machining Center (HMC)
- Heavy duty boxway machining center features solid meehanite cast iron machine frame.
- Outstanding stability, damping through extensive ribbing of machine frame.
- Wide induction hardened boxways for long-term accuracy and rigidity.
- All axes hand scraped by highly experienced technicians.
- Gear driven spindles that generate extremely high torque.
- Niigata’s mean workzone is the most generous in the industry.
| SPECIFICATIONS | ITEM | HN63E | |
|---|---|---|---|
| TRAVEL & WORK CAPACITY | X axis travel (longitudinal table) | 1080 mm | 42.5" |
| Y axis travel (vertical head) | 930 mm | 36.6" | |
| Z axis travel (column in & out) | 830 mm | 32.7" | |
| Max Work / Swing Diameter | 1080 mm | 42.5" | |
| Max Work / Height | 1000 mm | 39.4" | |
| TABLE | Table working surface | 630 x 630 mm | 24.8" x 24.8" |
| Table increments [option] | 1° [0.001°] | 1° [0.001°] | |
| Maximum mass on pallet | 1200 kg | 2640 lbs | |
| Maximum mass on pallet NC table | 1500 kg | 3300 lbs | |
| SPINDLE | Spindle speeds | 6000 min-1 | 6000 rpm |
| Spindle speeds (OP) | 12000 min-1 | 12000 rpm | |
| Spindle taper | CAT 50 BIG PLUS HSK100A option |
CAT 50 BIG PLUS HSK100A option |
|
| FEEDRATE | Rapid traverse X axis | 30 m/min | 1181 ipm |
| Rapid traverse Y axis | 30 m/min | 1181 ipm | |
| Rapid traverse Z axis | 30 m/min | 1181 ipm | |
| AUTOMATIC TOOL CHANGER (ATC) | Tool magazine capacity | Chain 62 [88/128/175/255] Matrix [126/178/230/308] |
Chain 62 [88/128/175/255] Matrix [126/178/230/308] |
| GENERAL | Machine weight approx. | 21500 kg | 47300 lbs |
| Control | Fanuc 30iB (31iB) | Fanuc 30iB (31iB) | |
All specifications subject to change without notice.
Additional information to come.
