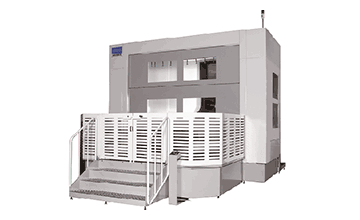

HN1250-S-BAR Hybrid Machining Center with Boring Function
- A hybrid machining center with boring function
- Harmony of rigidity from boxway system (Y axis) and high productivity from roller guide (X,Z axis)
- Rapid traverse 41m/min for ultra heavy work
- Outstanding stability & vibration damping by thick machine base
- Spindle diameter ɸ 130
- Solid machine base of HN series suitably supports powerful boring machining
| SPECIFICATIONS | ITEM | HN1250-S-BAR | |
|---|---|---|---|
| TRAVEL | X axis travel (longitudinal table) | 2200 mm | 86.61" |
| Y axis travel (vertical head) | 1650 mm | 64.96" | |
| Z axis travel (column in & out) | 1200 mm | 47.24 " | |
| W axis travel | 555 mm | 21.8" | |
| Max Work / Swing Diameter | 2500mm | 98.50" | |
| Max Work / Height | 2000mm | 78.74" | |
| TABLE | Table working surface | 1250 x 1000 mm | 49.2 x 39.4 " |
| Table increments | 0.001° | 0.001° | |
| Maximum mass on pallet | 5000 kg | 11000 lbs | |
| SPINDLE | Spindle speeds | 3500 min-1 | 3500 rpm |
| Spindle taper | CAT 50 BIG PLUS | CAT 50 BIG PLUS | |
| FEEDRATE | Rapid traverse X axis | 41 m/min | 1614 ipm |
| Rapid traverse Y axis | 41 m/min | 1614 ipm | |
| Rapid traverse Z axis | 41 m/min | 1614 ipm | |
| AUTOMATIC TOOL CHANGER (ATC) | Tool magazine capacity | Chain 62 [88/128/175/255] Matrix [126/178/230/308] |
Chain 62 [88/128/175/255] Matrix [126/178/230/308] |
| GENERAL | Machine weight approx. | 45000 kg | 100000 lbs |
| Control | Fanuc 30iB (31iB) | Fanuc 30iB (31iB) | |
All specifications subject to change without notice.
Superior Features, Higher Productivity Over Traditional Boring Mills
- BAR/QUILL W axis travel 21.1"
- Center mounted spindle. Eliminates column twist.
- Z-axis column feed. Superior accuracy & rigidity vs. table-fed machines.
- Full enclosures faster traverse, faster feed & speed vs. horizontal boring mills.
- True coolant thru spindle.
- ATC, APC, to maximize performance & productivity.
- Rigid snout, Heavy duty high torque spindle. 3500rpm 37kW (40HP), 1836N•m (1,354ft•lbs.) - Standard, 3500rpm 30kW (60HP), 1318N•m (972ft•lbs.) - Optional,
- BAR head with core cooling - Optional
