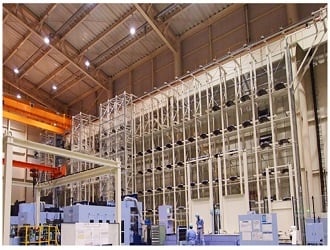

Example 1: FMS with 800 x 800 and 1000 x 1000 Horizontal MC
Constitution
| Product Size | 800 sized：φ1750×Ｄ：1400㎜ |
| 1000 sized：φ2300×Ｄ：1850㎜ | |
| No. of 800 sized HMC | 2 |
| No. of 1000 sized HMC | 2 |
| No. of 800 sized Pallet | 105 |
| No. of 1000 sized Pallet | 42 |
| No. of 800 sized Shelf | 6 |
| No. of 1000 sized Shelf | 4 |
| No. of Loading St. | 3 |

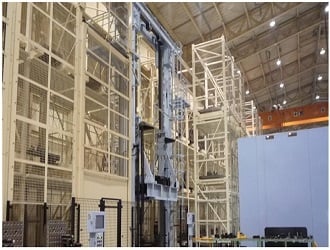

Example 2: FMS with 1300 x 1300 Horizontal MC
Constitution
| Product Size | φ3200 x 3000 mm |
| No. of 1300 sized HMC | 2 |
| No. of Pallet | 51 |
| No. of Shelf | 3 |
| No. of Loading St. | 2 |

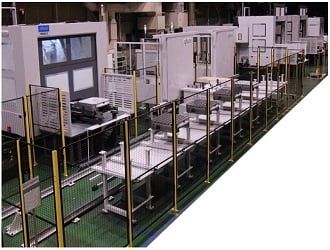

Example 3: FMS with 800 x 800 Horizontal MC
Constitution
| Product Size | φ1750 X D: 1400 mm |
| No. of 800 sized HMC | 1 |
| No. of Pallet | 7 |
| No. of Shelf | 1 |
| No. of Loading St. | 2 |
